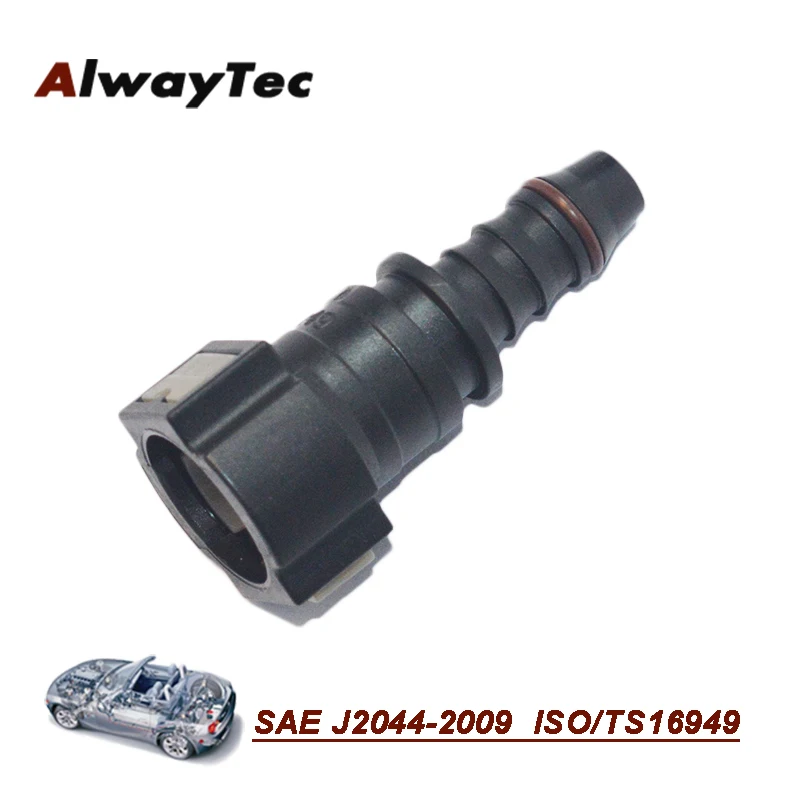

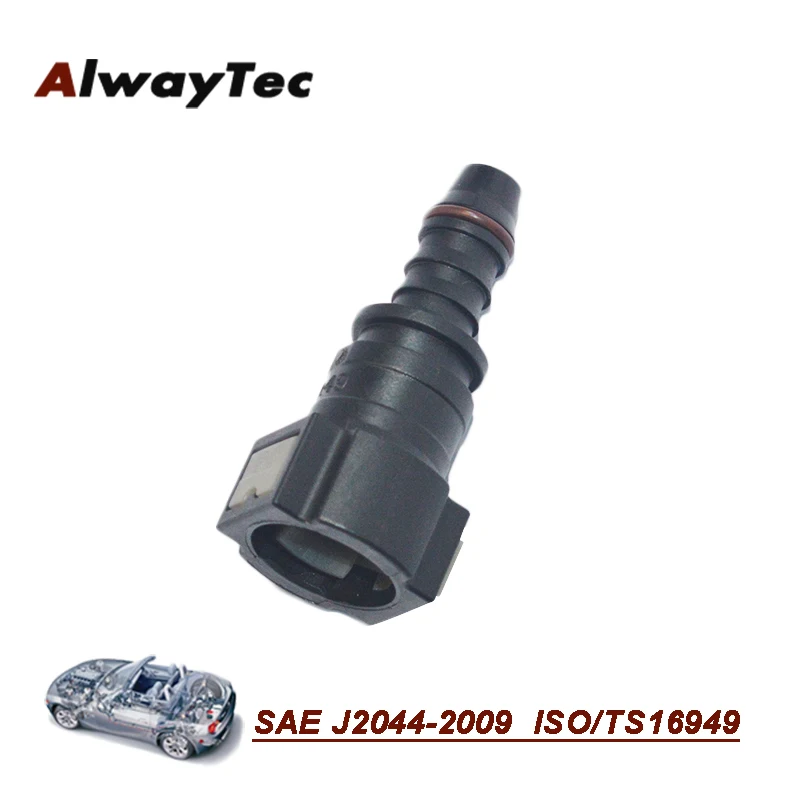

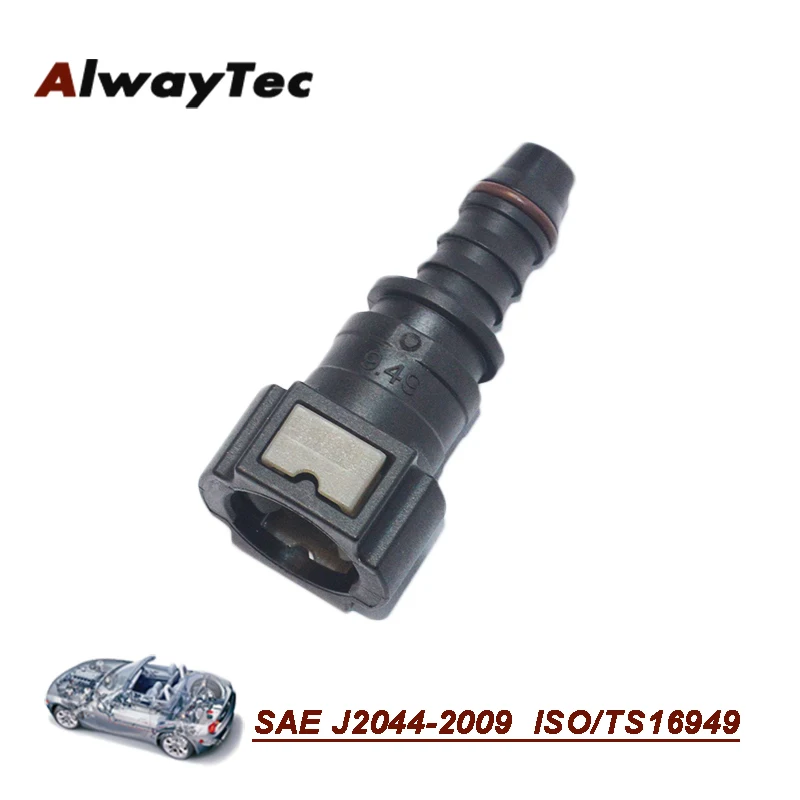

9.49MM Steel To 3/8 In. Fuel Pipe Quick Release Connectors

FOB Reference Price:Get Latest Price
$1.00 - $2.00 / Piece | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 2000 >2000
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
OE NO.:
D3
Size:
8*10mm or 7.95*9.95mm
Warranty:
1 Years
Place of Origin:
China
Brand Name:
Alway
Certification:
TSI16949-2009
Car Model:
All cars
Body material:
Nylon (PA12)
Seal:
viton
Button:
Double or single
Endform:
fir tree or rib
coupling:
female + male en piece
Application:
fuel system
Excutive Standard:
SAE J2044,TSI16949
Type:
FUEL TANK
Model Number:
D3/9.49mm-ID8
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
CTNS.
Port
Ningbo,Shanghai
Lead Time :
Quantity(Pieces) 1 - 2000 >2000
Est. Time(days) 10 To be negotiated

Home > Product Categories > Fuel Quick Connector





Product Description





SAE Quick connector is made up of body,in O-ring,out O-ring,spacer ring, securing ring and locking spring.when a mating tube end piece inserts the connectors,as locking spring has certain elasticity,Tie clip fastener to connect two connectors together and then pull back to assure a complete connection.So that the quick connector is a diffferene.Repair removal as long as the first advance the male connector and then press the latch.At both ends of the clip button,lock expansion,you can easily pull out the connector,before reconnect ,it should be relubricate with heavy oil SAE30 for long life purpose.

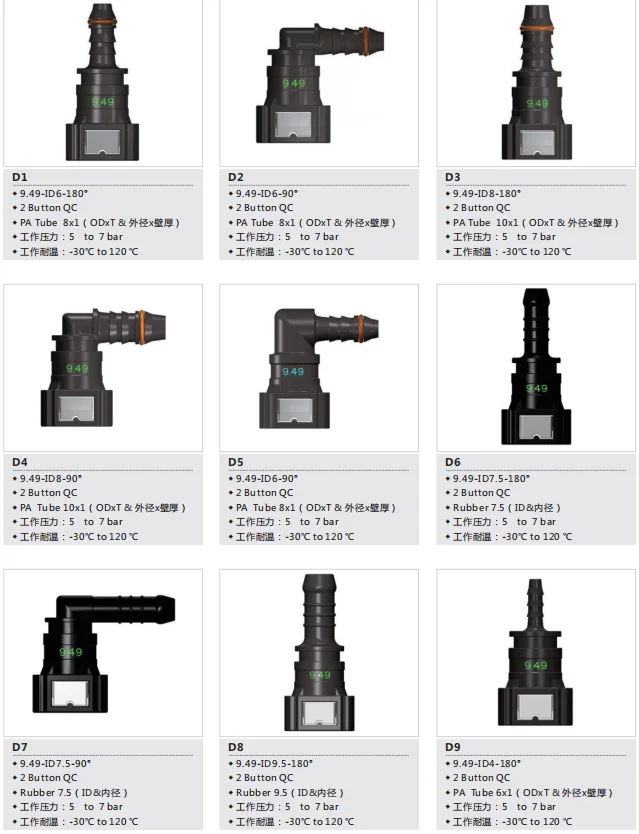

ModelD3 9.49-ID8-180°
EndformFir tree or rib
CertificateIATF 16949:2016
Excutive StandardSAE J2044,TSI16949
ShapeStraight
Max barb end10.8mm
CouplingFemale + male en piece
TypeQuick connector/quick disconnect/Fuel adapter/fuel fitting
Operating pressureapprox. 10 bar excess pressure
MediumFuels,air,oil&oil vapours
Product advantages

Fast assembly without tool -> time and cost reduction

· robot assembly possible -> automated processes

· compact building method -> employment in extremely close installation conditions possible

· integrated seal - > optimal tightness





Related Products




More Products




Company Information




Production Line



FAQ



1: Q:DELIVERY TIME?
A: QUICK SHIPPING WITHIN 48HOURS AFTER RECEIVED PAYMENT FOR TRIAL ORDER.
2:Q: IS FREE SAMPLES OK?
A:YES, OF COURSE,WELCOME TO CONTACT WITH US.
3.Q: WHAT'S MOQ?
A: NO MOQ , 1PC OK . SMALL ORDER WELCOME.
4.Q:DO YOU MAKE CUSTOMIZED PRODUCT?
A:YES,WE ACCPET IT.
5.Q: HOW TO BUY?
A:PLACE ORDER ONLINE (TRADE ORDER) OR OFFICE TRADING
6:Q:HOW TO PAY?
A:ONLINE ( TRADE INSURANCE), T/T,PAYPAL, WESTERN UNION.
7.Q: REFUND TERM?
A:SUPPORT 7 DAYS REFUND IF CASE OF QUALITY PROBLEM.
8:Q:ABOUT AFTER SALE SERVICE?
A: AFTER SALES SERVICES 24/7.
